What is a GitHub Actions workflow?

By updated

Improve this page

What would you like to report?

The issue opens pre-filled with this page title and URL.

A workflow is an automated process you define inside your repository. It tells GitHub: "when X happens, do Y". It is the heart of GitHub Actions.

What you will learn

  • Place a workflow in the repository, under .github/workflows/
  • Read its four parts: trigger, jobs, steps and runner
  • Tell a job from a step, and know what they share or not
  • Write and run a first workflow, then follow its run in the Actions tab
  • Use the github.* context variables without pasting them into a run:

What is a workflow?

A workflow is a text file (YAML) that describes:

  1. When to run (on every push? every pull request? every Monday?)
  2. What to do (run tests? build an image? deploy?)
  3. Where to do it (on which machine?)

When the condition is met, GitHub runs the described actions automatically. You have nothing to do: everything happens in the cloud, on machines managed by GitHub.

Where do you put a workflow?

Workflows must live in a specific folder of your source code:

my-project/
├── src/
│   └── ...
├── package.json
└── .github/
    └── workflows/
        ├── ci.yml        ← One workflow
        ├── deploy.yml    ← Another workflow
        └── tests.yml     ← And another one

The rules to remember:

  • The folder must be named exactly .github/workflows/ (with the leading dot)
  • Files must carry the .yml or .yaml extension
  • You can have as many workflows as you want
  • The file name carries no technical meaning (but pick explicit names)

The essentials of workflow syntax

Workflows are written in YAML, a readable configuration format. Here are the essential rules that keep you out of trouble.

Indentation is critical

In YAML, indentation defines the structure. No braces, no parentheses: what counts is the number of spaces at the start of the line.

# Level 0 (no indentation)
jobs:
  # Level 1 (2 spaces)
  build:
    # Level 2 (4 spaces)
    runs-on: ubuntu-24.04
    steps:
      # Level 3 (6 spaces)
      - name: Checkout
        # Level 4 (8 spaces)
        uses: actions/checkout@3d3c42e5aac5ba805825da76410c181273ba90b1 # v7.0.1

The classic mistake:

# ❌ WRONG: steps is not indented under build
jobs:
  build:
    runs-on: ubuntu-24.04
steps:                        # ← Wrong level!
  - run: echo "Hello"


# ✅ CORRECT: steps sits at the right level (4 spaces)
jobs:
  build:
    runs-on: ubuntu-24.04
    steps:
      - run: echo "Hello"

Multi-line commands

To run several commands, use the | (pipe) character:

- name: Build and test
  run: |
    echo "Installing..."
    npm ci
    npm test
    npm run build

The whole block forms a single script, which the runner hands to bash -e {0} on Linux and macOS. Two consequences usually discovered the hard way: the -e flag stops the step at the first failing command, so npm test never runs if npm ci returns an error; and a variable set on one line is still defined on the next, since it is the same interpreter.

That holds for the implicit shell only. Writing shell: bash explicitly makes GitHub run bash --noprofile --norc -eo pipefail {0}, and pipefail changes the behaviour: a failure in the middle of a pipe then fails the step, where the default shell only looks at the last command of the pipe.

When do you need quotes?

Quotes are optional except when your text contains special characters (: # { } & * ?):

# ❌ The colon breaks the parsing
message: Note: important


# ✅ Quotes are required
message: "Note: important"

The three main parts of a workflow

Every workflow is structured in three top-level keys, name, on and jobs. The four parts announced at the top of the page map onto them: the trigger is the on key, and each job carries its own runner (runs-on) and its steps.

1. The name (name)

name: Unit tests

This is the name displayed in the GitHub interface, under the "Actions" tab. Pick something descriptive so you can find your way once you have several workflows.

2. The trigger (on)

on:
  push:
    branches: [main]

The trigger defines when the workflow runs. It is the event that wakes your workflow up. Without a trigger, the workflow never runs.

3. The jobs (jobs)

jobs:
  test:
    runs-on: ubuntu-24.04
    steps:
      - run: npm test

Jobs define what the workflow does. A job is a set of tasks (steps) running on the same machine.

Triggers: when the workflow runs

The on: block defines the events that trigger your workflow. Here are the most used ones:

TriggerWhen it firesTypical use case
pushWhen code is pushedTests, lint, build
pull_requestWhen a PR is opened or updatedValidation before merge
workflow_dispatchManually (a button in the interface)On-demand deployment
scheduleAt fixed times (cron syntax)Nightly security scans
releaseWhen a release is publishedPublishing packages

You can combine several triggers:

on:
  push:
    branches: [main]      # On every push to main
  pull_request:
    branches: [main]      # On every PR targeting main
  workflow_dispatch:       # And manually when needed

Jobs: the units of work

A job is an independent unit of work. Each job:

  • runs on its own virtual machine (called a runner);
  • can contain several steps;
  • can depend on other jobs or run in parallel.
jobs:
  build:
    runs-on: ubuntu-24.04
    steps:
      - run: echo "I build"


  test:
    runs-on: ubuntu-24.04
    steps:
      - run: echo "I test"

By default, jobs run in parallel. In the example above, build and test start at the same time.

Running jobs in a specific order

When a job must wait for another one to finish, use needs:

jobs:
  build:
    runs-on: ubuntu-24.04
    steps:
      - run: echo "Build"


  test:
    runs-on: ubuntu-24.04
    needs: build            # Waits for "build" to finish
    steps:
      - run: echo "Test"


  deploy:
    runs-on: ubuntu-24.04
    needs: [build, test]    # Waits for both to finish
    steps:
      - run: echo "Deploy"

Runners: where the code runs

The runner is the machine that executes your job. GitHub offers hosted runners, free within certain limits:

RunnerSystemUse case
ubuntu-24.04Linux Ubuntu 24.04The most common, fast and cheap
windows-2025Windows Server 2025.NET applications, Windows tests
macos-15macOS 15 (Sequoia)iOS and macOS applications
jobs:
  test-linux:
    runs-on: ubuntu-24.04


  test-windows:
    runs-on: windows-2025


  test-mac:
    runs-on: macos-15

Steps: the individual tasks

Steps are the tasks to run inside a job. They run sequentially, one after the other, on the same machine.

There are two kinds of steps.

1. Running a shell command (run)

steps:
  - name: Print a message
    run: echo "Hello!"


  - name: Several commands
    run: |
      echo "First line"
      echo "Second line"
      npm install
      npm test

The | lets you write several commands across several lines.

2. Using an action (uses)

steps:
  - name: Check out the code
    uses: actions/checkout@3d3c42e5aac5ba805825da76410c181273ba90b1 # v7.0.1


  - name: Set up Node.js
    uses: actions/setup-node@949feb2413d6458794dcd2491c4babbbce0c15c1 # v7.1.0
    with:
      node-version: 20

An action is a reusable block of code. Rather than rewriting the logic to "check out the repository code" or "install Node.js", you use an existing action.

Jobs versus steps: understanding the difference

This is a frequent source of confusion. Here is how to tell them apart:

Workflow
├── Job 1 (machine A)
│   ├── Step 1: check out the code
│   ├── Step 2: install the dependencies
│   └── Step 3: run the tests
│
└── Job 2 (machine B)
    ├── Step 1: check out the code
    └── Step 2: deploy
ConceptDefinitionEnvironment
JobA group of tasksEach job gets its own machine
StepAn individual taskEvery step of a job shares the same machine

An important consequence:

  • Files created by a step are available to the following steps of the same job (same machine).
  • Files created inside a job are not available in another job (different machines). You need artifacts to share files between jobs.

Your first workflow

  1. Create the folder .github/workflows/ at the root of your project

  2. Create a file named hello.yml in that folder, with this content:

    name: Hello World


    on:
      push:
        branches: [main]
      workflow_dispatch:


    jobs:
      hello:
        runs-on: ubuntu-24.04
        steps:
          - name: Say hello
            run: echo "Hello, GitHub Actions!"


          - name: Print some context information
            env:
              REPO: ${{ github.repository }}
              BRANCH: ${{ github.ref_name }}
              AUTHOR: ${{ github.actor }}
            run: |
              echo "Repository: $REPO"
              echo "Branch: $BRANCH"
              echo "Commit author: $AUTHOR"

    Those three values go through an env: block instead of being written straight into the run: script. The reason fits in one sentence: a branch name is chosen by whoever opens the pull request, and a value inserted by ${{ }} is pasted as is into the script before it runs. The Security basics guide shows what an attacker can do with that.

  3. Commit and push to the main branch

  4. Open the Actions tab of your repository on GitHub

  5. Watch your workflow run

Where do you see the results?

Once your workflow has been triggered:

  1. Go to your GitHub repository
  2. Click the Actions tab
  3. You see the list of every run (workflow runs)
  4. Click a run to see its jobs
  5. Click a job to see the logs of each step

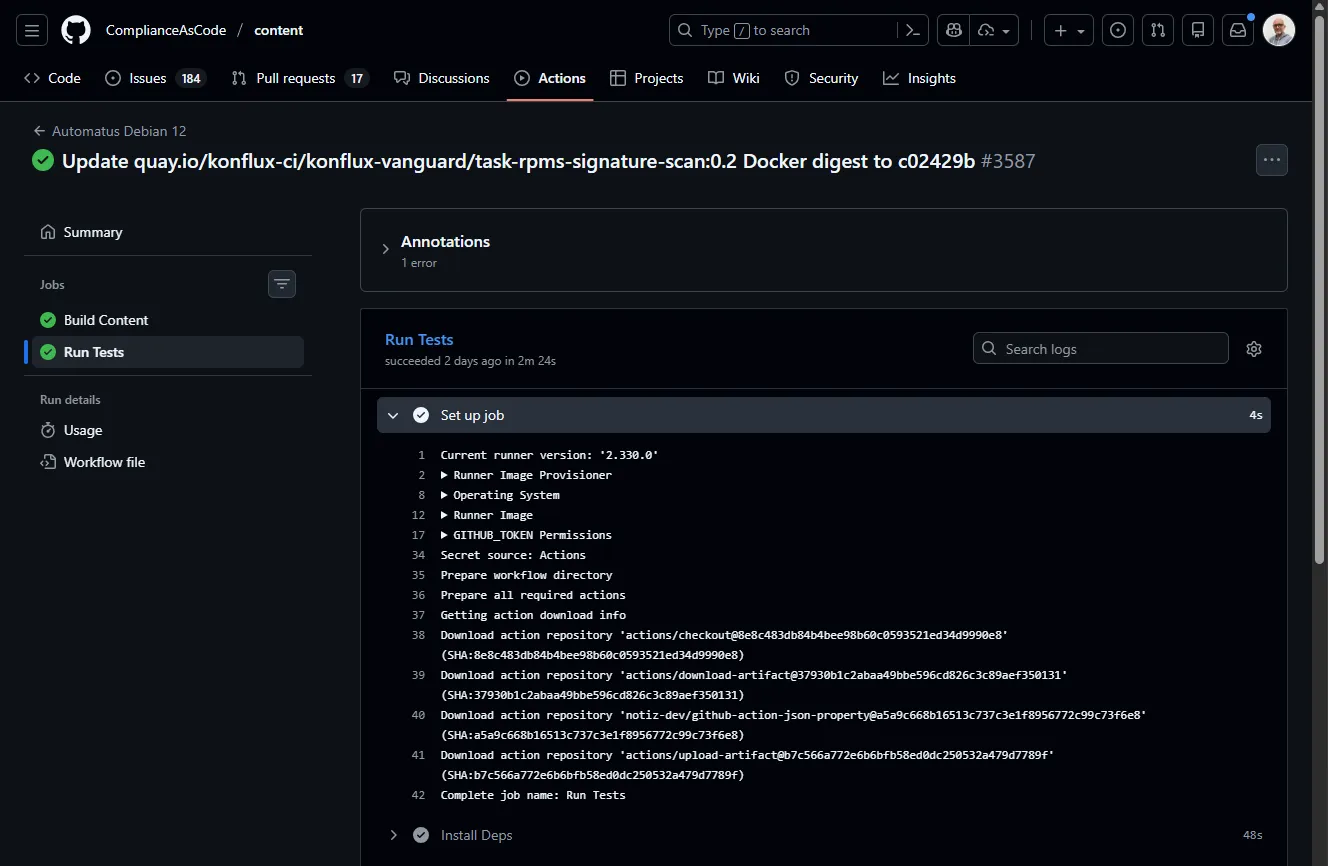

GitHub Actions interface showing workflow runs and job details

The interface shows you:

  • the steps that succeeded (in green);
  • the steps that failed (in red);
  • the steps currently running;
  • the detailed logs of every command.

The lifecycle of a workflow

When an event triggers a workflow, here is what happens:

  1. Event: someone pushes code, opens a PR, and so on
  2. Detection: GitHub detects the event and looks for matching workflows
  3. Queueing: the workflow is added to the execution queue
  4. Runner assignment: GitHub assigns a virtual machine
  5. Execution: the jobs and steps run
  6. Cleanup: the machine is destroyed, the results are kept

Every run is ephemeral: the machine is created for the occasion and destroyed afterwards. That is why you always start by checking out the code (actions/checkout).

Context variables

In the previous example you saw ${{ github.repository }}. That is a context variable: GitHub exposes information about the current run.

A few useful variables:

VariableContent
github.repositoryThe repository name (owner/repo)
github.ref_nameThe branch or tag name
github.actorThe user who triggered the workflow
github.event_nameThe event type (push, pull_request, and so on)
github.shaThe commit SHA
github.run_idThe unique ID of this run

Put it into practice

The lab starts from a small Python library whose nine tests nobody runs before merging. You write the workflow that runs them on every push and every pull request, then prove it by breaking a test. The check really runs your workflow with act and verifies five points: both triggers, the pipeline failing on a broken test, permissions limited to reading the code, and actions pinned on the SHA of their commit. Those last two reflexes are explained in the next lesson: the lab has you apply them right away.

Key points

  • A workflow is a YAML file stored in .github/workflows/: "when this happens, do that".
  • It is built from four parts: trigger (on:), jobs, steps and runner (runs-on:).
  • Each job gets its own machine; the steps of one job share its filesystem.
  • The machine is ephemeral: hence the actions/checkout at the top of almost every workflow.
  • A ${{ github.* }} value is pasted into the script before it runs: it goes through env:.

Check your understanding

Make sure the essentials of this guide are yours. The questions only cover what was explained here.

Knowledge check

Check what you have learned with this interactive quiz

6 questions
6 min
70% to pass

How it works

  • The timer starts when you click Start
  • Multiple choice, true/false and short answer questions
  • You can move between questions
  • Detailed results are shown at the end
